Item specifics

is_customized:
Yes
Brand Name:
Industech 7 inch TFT LCD Color Monitor
Type:
TFT
Model Number:
AT070TN92
Definition:
7 inch TFT LCD Color Monitor
Dimension:
7 inch

Product Description

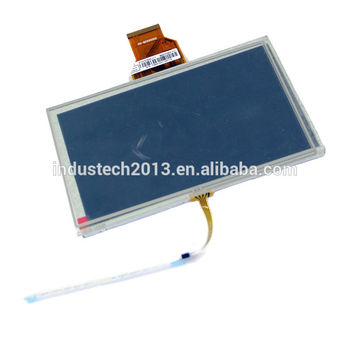

7 inch TFT LCD Color Monitor For ARM Board

The on board LCD FPC connector allows easy integration with Annolux 7 inch AT070TN92 LCD panels. The CABFPC50 provides a generic 0.5mm header connection including the power for the LCD backlight and module logic voltages.
7 inch TFT LCD Color Monitor Connector pinout:
LCD


The on-board FPC4, 1 mm pitch provides an easy way to interface with TSC2046 touch screen controller.
Touch Screen Connector pinout:
TOUCH SCREEN.jpg


Packaging Details

Unit Type:
piece
Package Weight:
0.500kg (1.10lb.)
Package Size:
25cm x 17cm x 12cm (9.84in x 6.69in x 4.72in)
